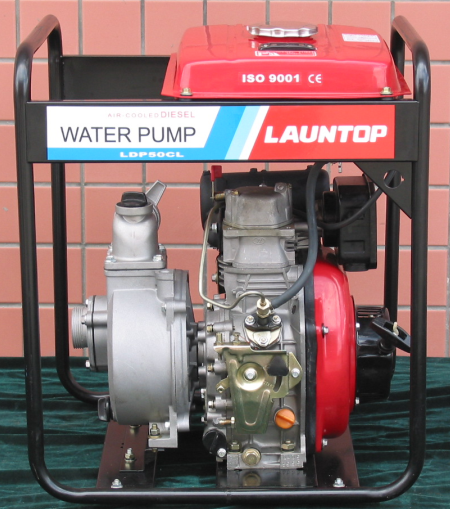

Model | LDF50C(L) | |
Pump | Inlet | 50mm(2") |
Outlet | 2"X1 | |
Capacity (m3 / hr) | 23 | |
Self-priming time (s / 4m) | 30 | |
Suction head (m) | 8 | |
Max discharge head (m) | 55 | |
Impeller number | single | |
Engine | Model | LA178FP |
Type | 4-storke, air cooled diesel | |
Max output (hp / rpm) | 6.0 / 3600 | |
Displacement (cc) | 296 | |
Fuel tank capacity (L) | C=3.5 | |
CL=12.5 | ||
Unit | Net weight (kg) | C=45 |
CL=50 | ||
Dimensions (L*W*H) (mm) | C=540*440*540 | |
CL=540*455*655 | ||
